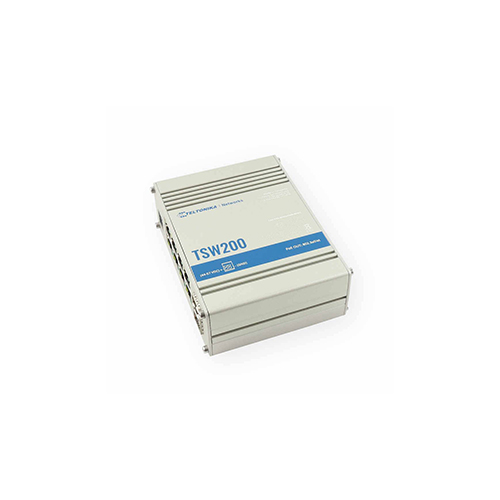

Teltonika TSW200 Unmanaged Industrial Switch Price in Dubai UAE

Teltonika TSW200 Unmanaged Industrial Switch Price in Dubai UAE

AED 420.00

SKU: TSW200 Category:
  • Description
  • Reviews (0)

Description

ETHERNET

Hardware Specifications
LAN 8 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Fiber 2 x SFP ports
POE
PoE ports Port 1 – 8
PoE standards 802.3af and 802.3at
PoE Max Power per Port (at PSE) 30 W
Total PoE Power Budget (at PSE) 240 W
PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking) 20 Gbps
Packet buffer 128 KB
MAC address table size 2K entries
Jumbo frame support 9216 bytes
POWER
Connector 2 pin industrial DC power socket
Input voltage range 7-57 VDC
Input voltage range for PoE 44-57 VDC
Power consumption (idle/max no PoE/max) 1,81 W/5.5 W/245.5 W
PHYSICAL INTERFACES (PORTS, LEDS)
Ethernet 8 x RJ45 ports, 10/100/1000 Mbps
Fiber 2 x SFP ports
Status LED’s 1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’s
Power 1 x 2 pin industrial DC power socket
Ground 1 x Grounding screw
PHYSICAL SPECIFICATION
Casing material Full aluminum housing
Dimensions (W x H x D) 132 x 44.2 x 95.1 mm
Weight 456 g
Mounting DIN rail or wall mounting (additional kit needed), flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 °C to +75 °C
Operating humidity 10 % to 90 % non condensing
Ingress Protection Rating IP30
